Description

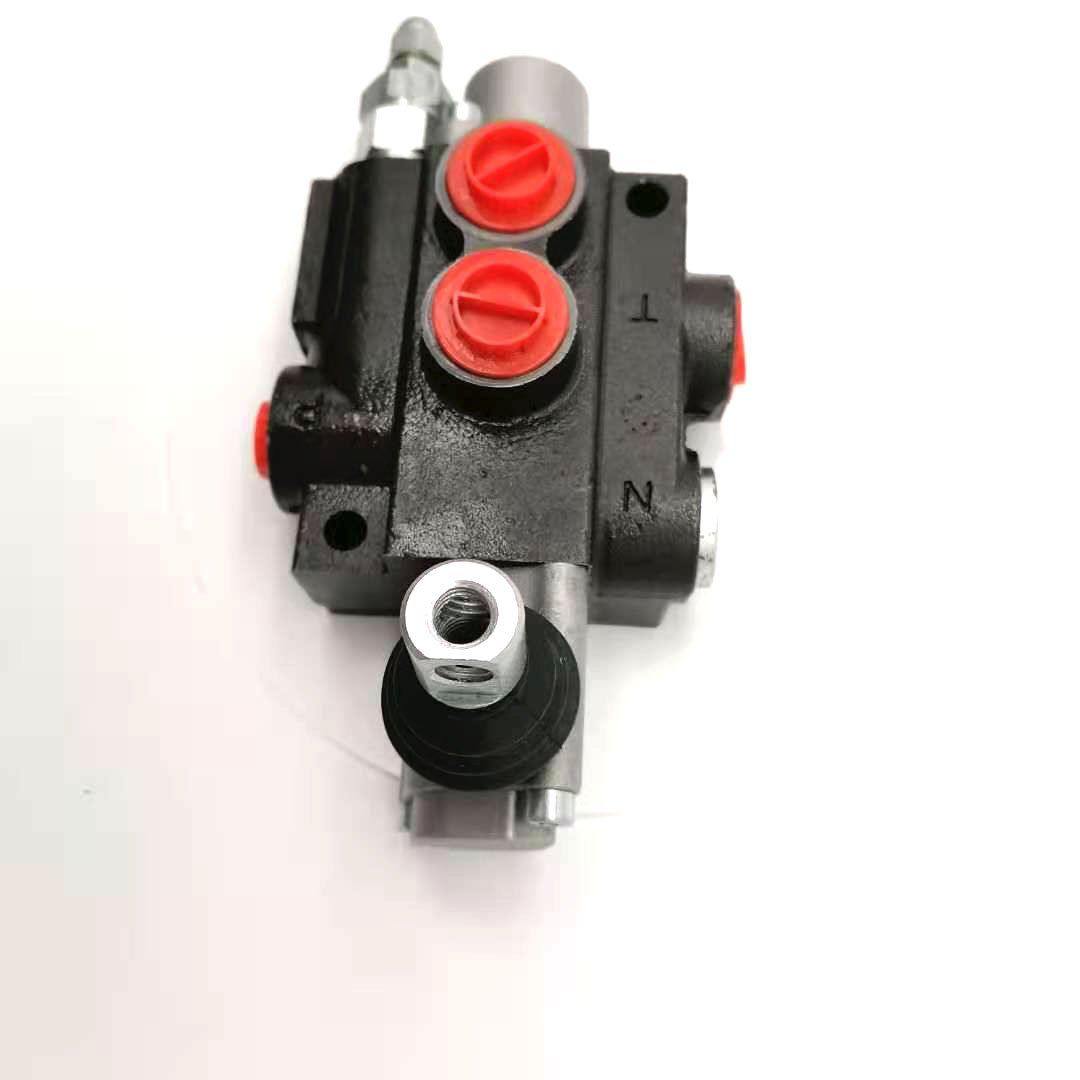

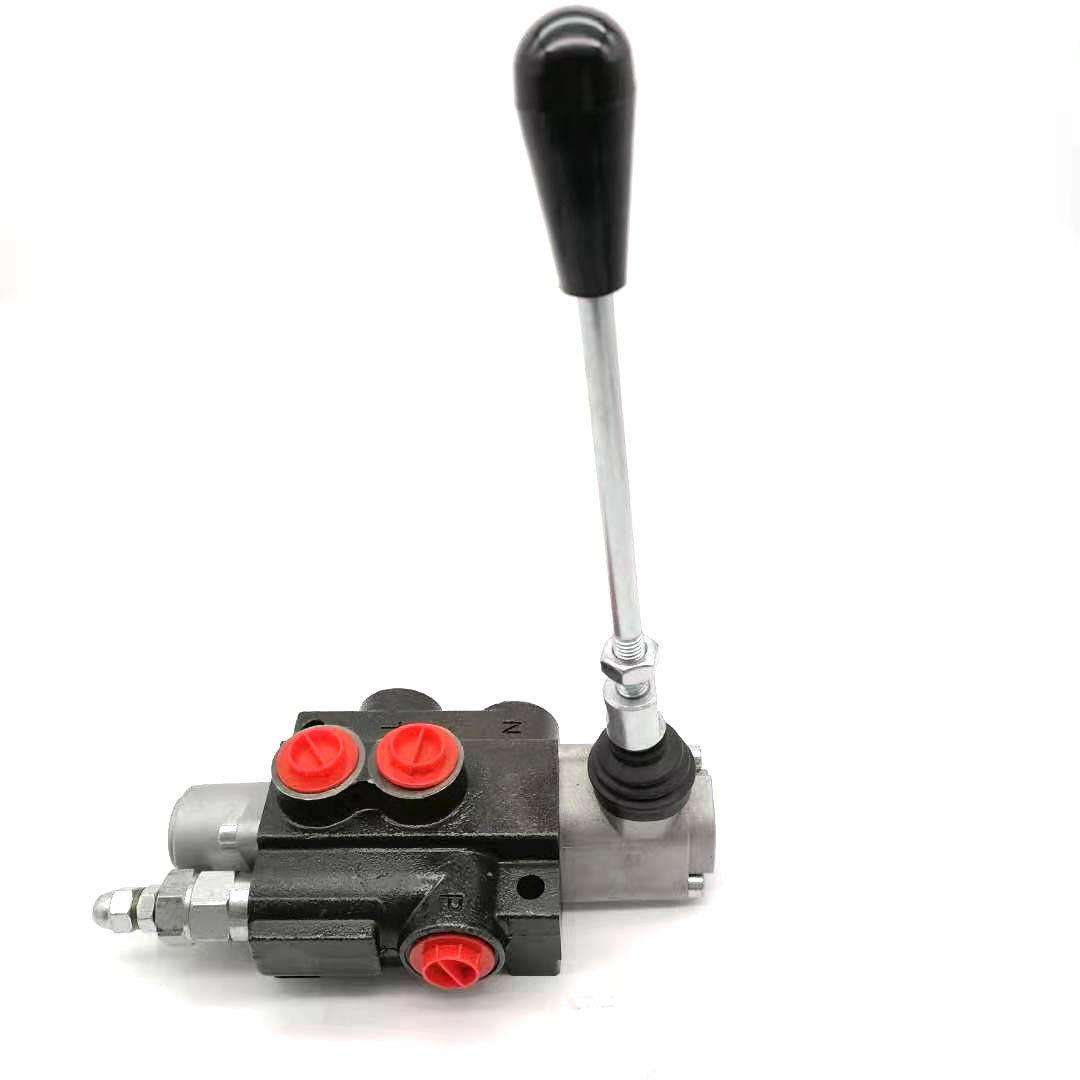

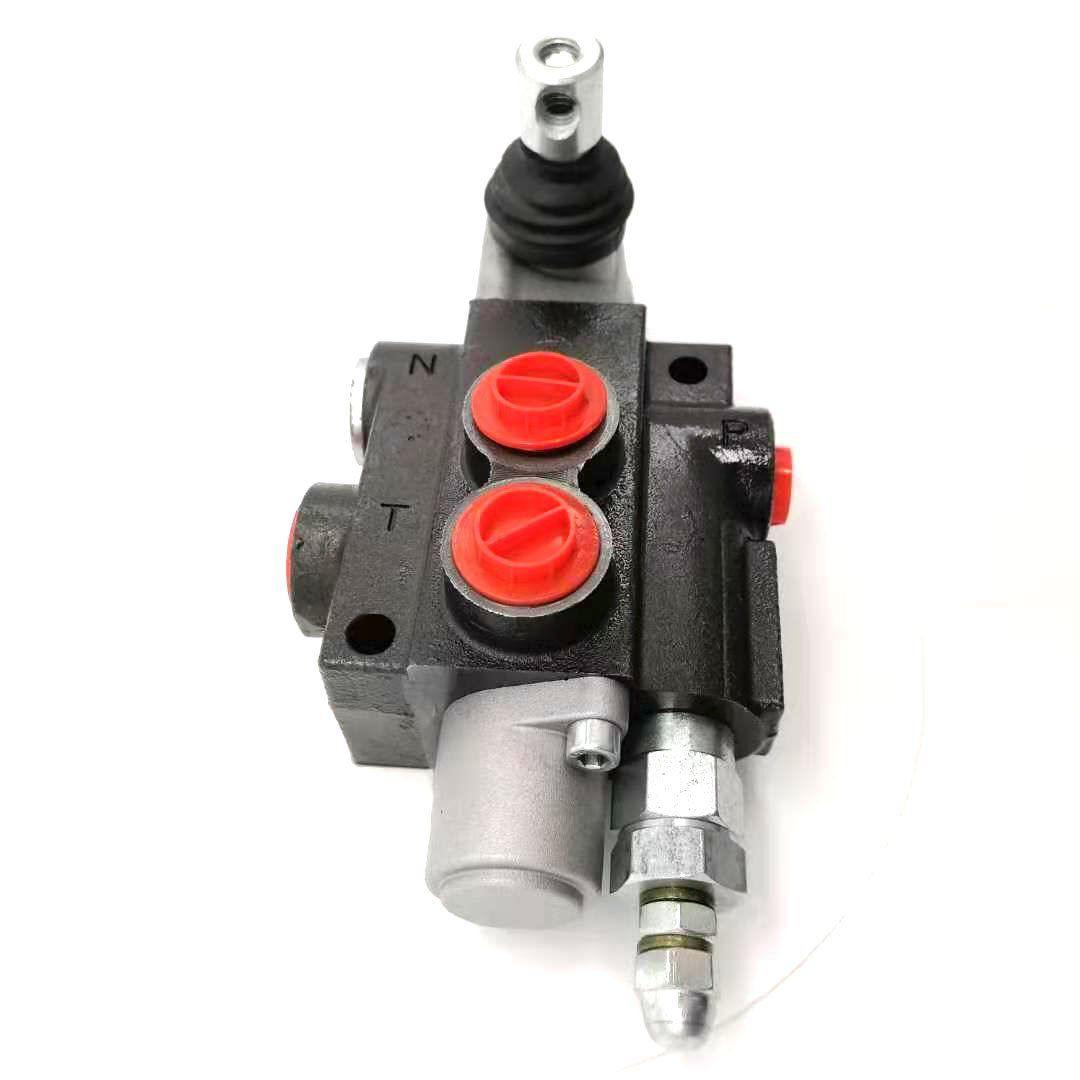

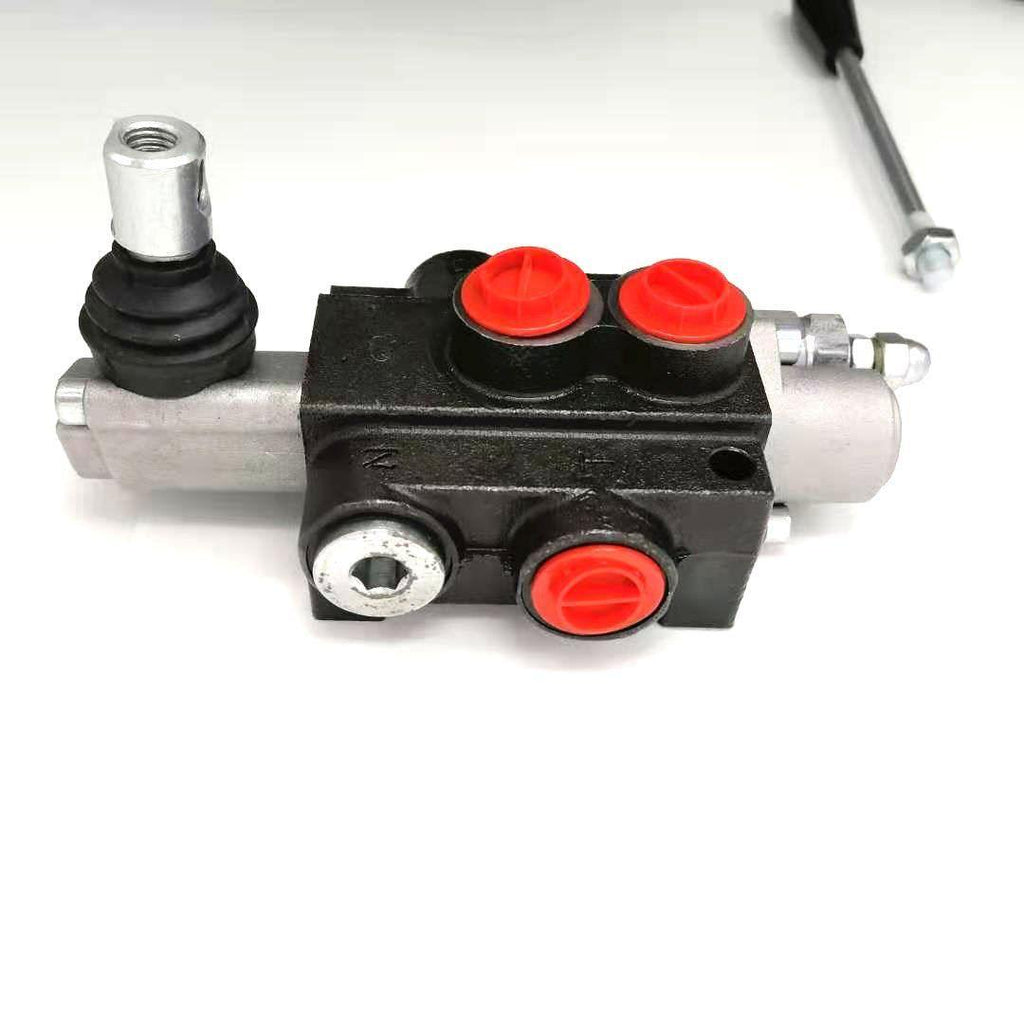

Monoblock 1p40 Hydraulic Directional Control Valve
Application:
Operate hydraulic cylinders (Double-Acting or Single-Acting)
Operate hydraulic motors (“D” Spool Required)
Install rear remotes on a tractor
Interchange part number:
40LPM 1p40
Description:
Hydraulic Directional Control Valve
Condition:New, original
PLEASE NOTE: Genuine/Original parts do not provide return or exchange service.
Features:
Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 21 GPM (80 l/min)
A & B Work Ports: #10 SAE O-Ring (7/8”-14) Thread
Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
Outlet Port: #12 SAE O-Ring (1-1/16”-12) Thread
3 – 5/16” Mounting Holes
